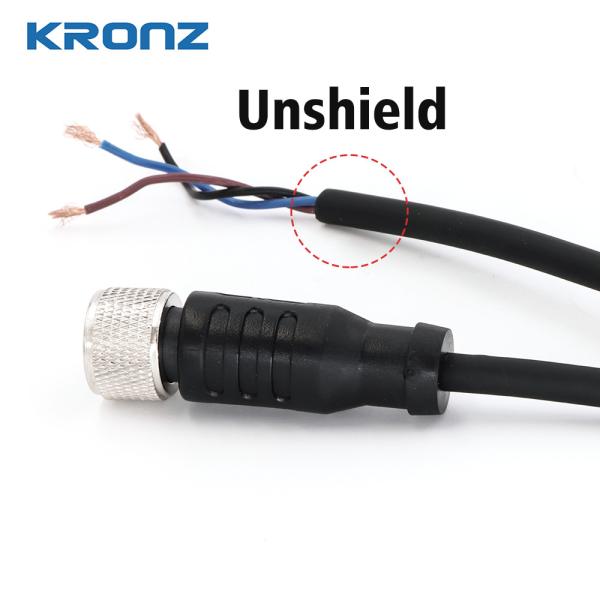

M12 Connector Waterproof Sensor Connector IP67 3×0.34 (3×22AWG) PVC Black Wire
Product Description
Available in cable lengths of 1M/2M/3M/5M/10M/15M, this M12 Connector provides flexibility in installation and allows for customization to fit specific needs. Its voltage rating of 250V ensures that it can handle a range of electrical applications.
Whether it's used in manufacturing, automation, or any other industrial setting, the M12 Connector is a reliable and trusted choice for connecting equipment. Its pre-molded cable design makes installation easy and efficient, saving time and effort. With its durability, flexibility, and secure connections, the M12 Connector is a must-have for any industrial application.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
 | 1=BN 2=WH
3=BU
4=BK | A | 4A | 250V | 4×0.34
(4×22AWG)
PVC, black | Straight | 15M | M1204F-15/P00K |
Applications
The M12 4 pin connector is designed to provide a reliable connection for various types of machinery and equipment. This connector is rated at IP67, which means that it can withstand harsh industrial environments and is resistant to dust and water. It has a pin-out configuration of 1-Power, 2-Ground, and 3-Signal, making it ideal for connecting sensors, actuators, and other types of devices.
The M12 angled cable connector is pre-assembled with 4×0.34 (4×22AWG) PVC, black wires. The wire gauge is suitable for transmitting current up to 4A, making it ideal for low-power devices. The contact surface material is made of brass and is gold-plated, ensuring that the connector maintains a stable connection even in harsh environments.
Overall, the KRONZ M1204F-15/P00K M12 4 pin connector is an excellent choice for industrial applications that require a reliable and secure connection. It is suitable for a wide range of scenarios, including machinery, automation equipment, and robotics. Whether you need to connect sensors, actuators, or other types of devices, this pre-assembled cable connector will provide a stable and secure connection, ensuring that your equipment operates smoothly and efficiently.
