Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Kronz (guangzhou) Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

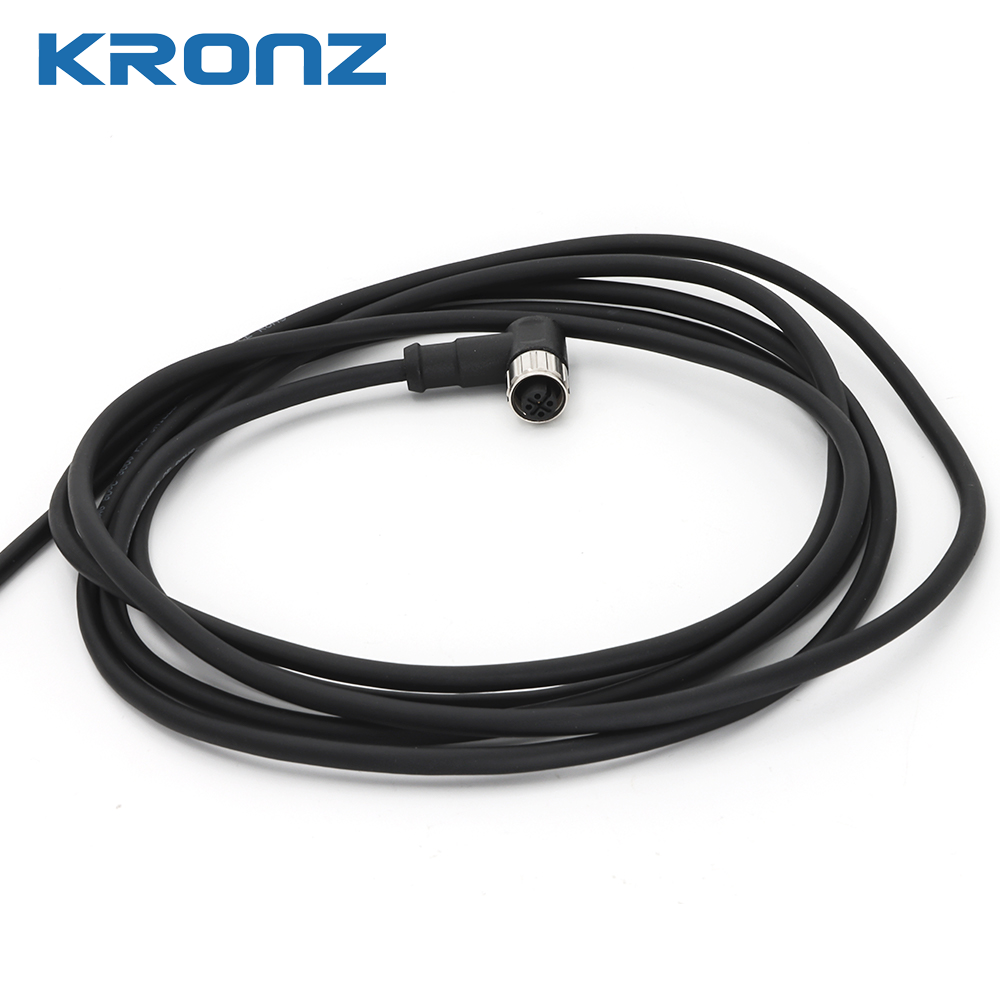

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

  • 1
  • 2

Model Number : M1205FA-2/POOR

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Product name : M12 Pre-Assembled Cable Connector

Color : Black

Material : Alloy

IP rate : IP67

Endurance(shell) : >100 cycles

Insulation Resistance : ≥ 100MΩ

Contact resistance : ≤ 5mΩ

Ambient temperature : -25~+85℃

Contact Now

M12 Angled Circular Connector Female 5 Pin Pre-assembled Cable Connectors

Product Description


M12 connectors are also available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications, cable specifications and sizes can be customized according to customer requirements.

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

Technical Data


Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors 1=BN
2=WH
3=BU
4=BK
5=GY
A 4A 60V 5×0.34
(5×22AWG)
PVC, black
Angled 2M M1205FA-2/POOR
5M M1205FA-5/POOR
10M M1205FA-10/POOR
