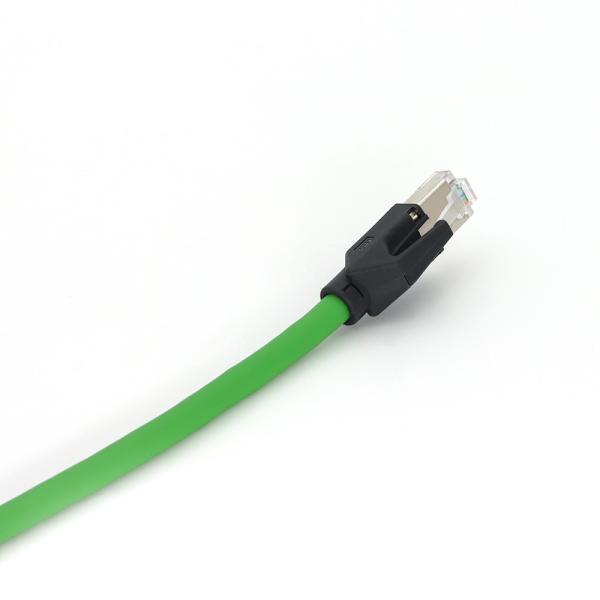

Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded

Name: Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded
Brand: KRONZ
Price: 1 USD

China Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded factory

Brand Name : KRONZ

Model Number : RJ45S-2/E301

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Type : RJ45

Description : Pre-assembled Cable with RJ45 Connector

Pin : 4

Cable color : Blueish green

Material : PVC

Wire gauge : 2×2×0.25,shielded (2×2×24AWG)

Cable outlet : Straight

Length : 2M/5M/10M/Customized

Contact Now

Pre-assembled Cable with RJ45 Connector 4 Pin 48V Straight Ethernet Shielded

Product Description

The RJ45 connector is a widely used network and telephone connection interface that can interconnect various network devices to achieve remote transmission of data and stable transmission of telephone signals. RJ45 interface is widely evaluated in various fields.

Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/OR 2 = OR 3 = WH/GN 6 = GN	4PIN	1.5A	48V	2×2×0.25,shielded (2×2×24AWG) Blueish green, PVC, OD=5.6	Straight	2M	RJ45S-2/E301
							5M	RJ45S-5/E301
							10M	RJ45S-10/E301

Product Tags:

Pre Assembled Cable RJ45 Connector 48V

RJ45 Connector 4 Pin 48V

Shielded RJ45 Connector
